High Temperature Brazing Furnace
|
RED DEVIL M

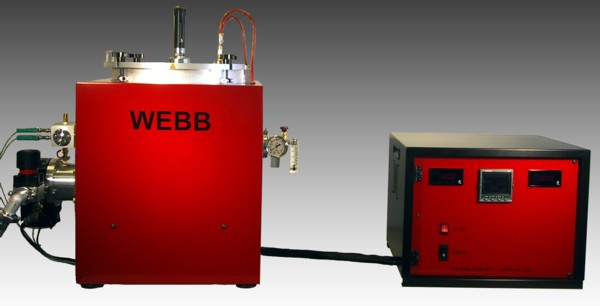

The complete RED DEVIL™ M vacuum brazing furnace features a 200 mm (8-inch) diameter by 75 mm (3-inch) tall work zone, 1200ºC maximum temperature, 220 L/sec turbomolecular pump, 3 L/sec mechanical vacuum pump, molybdenum heating element, metallic heat shields, and data acquisition via RS 232 port.
RED DEVIL™ M Annealing Furnace Specifications
| Maximum Temperature |
1200ºC |
| Ultimate Vacuum |
10-7 torr |
| Heatup Time |
1 hour |
| Cooldown Time |
1 hour |
| Opening Temperature |
300ºC or less |
| Work Zone |
200mm dia X 75mm tall |
| Insulation |
Radiation Shields
molybdenum and stainless steel
|
| Heating Element |
molybdenum |
| Mechanical Vacuum Pump |
3 L/sec, two stage |
| High Vacuum Pump |
210 L/sec turbomolecular |
| High Vacuum Valve |
optional |
| Rough Vacuum Valve |
diaphragm |
| Gas Inlet and Outlet Valves |
manual |
| Overpressure Relief Valve |
+20 kPa |
| Flowmeter |
20 SCFH |
| Bourdon Tube Gauge |
+/- 100 kPa |
| Vacuum Gauge |
10-7 torr to atm |
| Control and Secondary TCs |
platinum/rhodium |
| Program Controller |
20 program storage |
| Data Acquistion |
via RS 232 port |
| Communications |
RS 232 |
| Line Voltage |
240V |
| Frequency |
50 Hz or 60 Hz |
| Power |
Furnace
Mechanical Pump
|
3 kW
500 W
|
| Furnace |
Weight
Width
Depth
Height
|
100 kg
700 mm
500 mm
750 mm
|
| Controls |
Weight
Width
Depth
Height
|
50 kg
500 mm
400 mm
400 mm
|
| Mechanical Pump |
Weight
Width
Depth
Height
|
25 kg
150 mm
550 mm
250 mm
|
|
